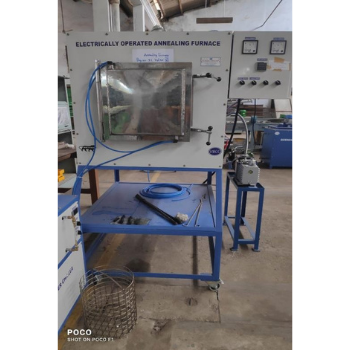

1. Shell size and useful volume:~550 x550x800mmand 300(L) x 300(W)x 300 (D)mm
2. Vacuum Chamber: ~300X 300 X 500mm INCONEL ALLOY
3. Heating System:
4. Heating elements: APM grade Kanthal (melt temp 1450˚C)
5. Maximum Power :6kW
6. Maximum temperature:1200ºC
7. Working temperature: 1100ºC
8. Three phase/ 415V/AC
9. Working temp range: 5-10˚C
10. Water circulation: 20 lit/min

1. Shell size and useful volume:~550 x550x800mmand 300(L) x 300(W)x 300 (D)mm
2. Vacuum Chamber: ~300X 300 X 500mm INCONEL ALLOY
3. Heating System:
4. Heating elements: APM grade Kanthal (melt temp 1450˚C)
5. Maximum Power :6kW
6. Maximum temperature:1200ºC
7. Working temperature: 1100ºC
8. Three phase/ 415V/AC
9. Cooling: Automatic cooling on/off facility
10. Working temp range: 5-10˚C
11. Water circulation: 20 lit/min

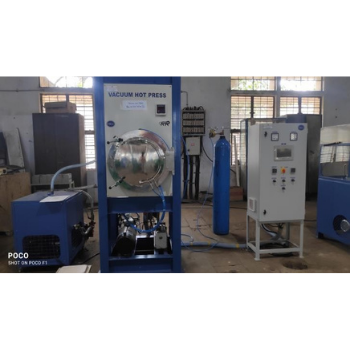

1. Press Structure: Outer Dimension ≈600 x 700 x 600 mm
2. Furnace panel box : Control panel box coupled with stand with press
3. Capacity: 30 ton
4. Chamber dimension : Dia.- 50mm; Height - 150mm
5. Max. hydraulic Pressure:250MPa inside the chamber

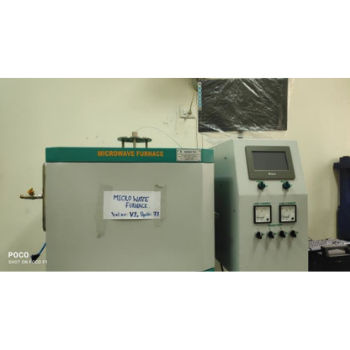

MAKE: NANO TEC., MODEL.NO. NT/MF- 1650º C

1. Hot Zone Size : 100 mm (W) x 100 mm (H)x 100 mm (D)
2. Inner Shell Construction :Thick gauge stainless steel–316
3. Operating Temperature : 1650ºC
4. Repeatability : 0.1% of the reading in ºC + 1ºC
5. Temperature sensor : IR Pyrometer make IMPAC (imported) with 0.1ºC resolution
6. Magnetron filament: 4.6(Ef/V), 14(If/A)
7. Magnetron frequency :2.45 GHz
8. Magnetron Power : 6000 Watts
9. Number of Magnetron 4 Nos.

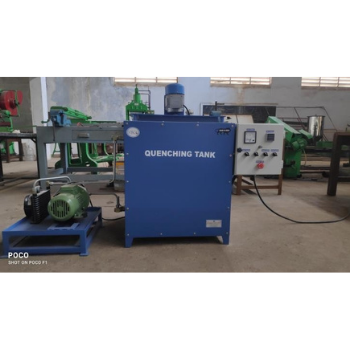

1. Effective Chamber Size:500mmx500 mm x 600 mm Depth
2. Maximum Temperature: 800° C
3. Oil Cooler: 2.0KW
4. Oil Pump: 1Hp
5. Power rating: 3KW
6. Insulation:50mm glass wool
7. Power supply:440, 3 Phase, 50 Hz

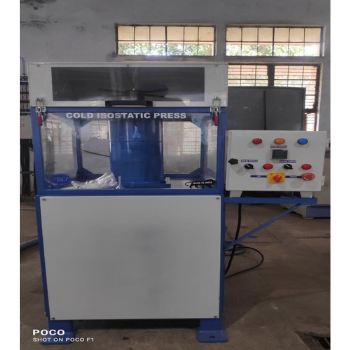

1. Overall Size: 450 (W) mm X 450 (D) mm X 850 (H) mm
2. Useful Shell :100 mm dia. And 150 mm(L)
3. Tank Capacity:100 liters.
4. Pump type: Gear type
5. Maximum Pressure: 250 bar
6. Flow ratios of Pump: 5lpm
7. Directional control: double solenoid
8. Motor: 3 phase,415 V, 50 Hz, 1.5HP
9. Capacity of the cylinder: 25 Tonnage
10. Working Capacity: 20Tonnage
11. Piston Stroke:150 (max)
12. Pressing Rod: Size( 100mm(dia.)X150 mm (L)
13. Die: Size: Dia. 15 mm, 20 mm&Height:30–40 mm
14. Vacuum Pumping System:
15. Pump Capacity: Ultimate vacuum of 10- 3torr
16. Chamber vacuum: 5 x 10-3 torr
