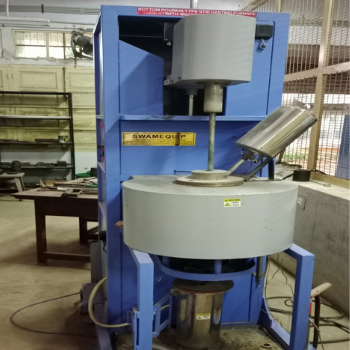

Max. Temp : 1000°C

Capacity : 500 to 1000 grams

Stirrer Speed : 300 to 1200 rpm

Blade : SS 310 Grade , Replaceable

Reinforcement Temp : 800°C

Reinforcement Capacity : 1 lit

Mould Preheat Temp : 45o°C

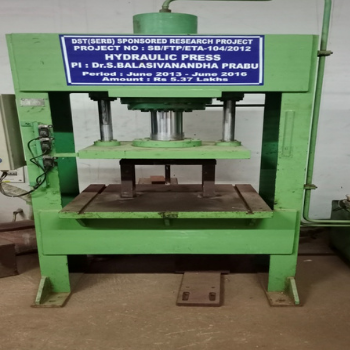

Tonnage : 50

Frame : H

Bed size – 700 x 700 mm2

Stroke : 400 mm

Approach Speed : 25mm/sec

Pressing Speed : 0.5,1,2,4 mm/sec

Return Speed : 40mmsec

Cylinder Bore Diameter : 180 mm

Rod Diameter : 125 mm

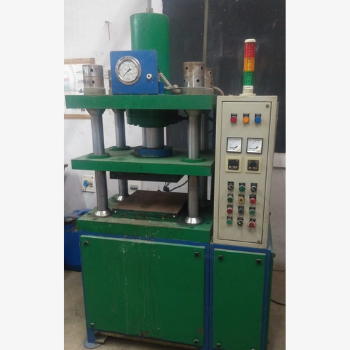

Make & Type	Flowmech & Pillar-type (Down-Stroke)
Capacity	20 Ton Press
No. of Cylinder	1 No, Double Acting with 160 mm bore diameter and 250 mm stroke length
Bed Size	400 x 400 mm
Approach Speed	25 mm/sec
Pressing Speed	5 mm/sec
Return Speed	40 mm/sec
Max. working Pressure	100 Kg/Cm3
Heat Source & range	Electric Heater upto 180°C
Pump	5 H.P with 1440 RPM
Oil Reservoir	75 Ltrs.

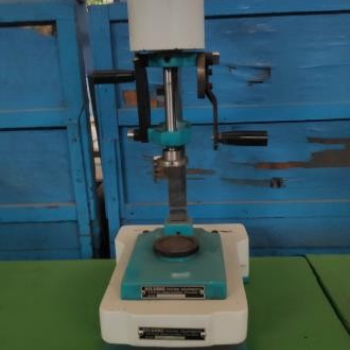

1. Sliding weight (Confirming to AFS Standard)
2. Lifting and Ramming Cam
3. Specimen Tube
4. Pedestal Cup
5. Stripper
6. Sample Size 50mm x 50mm

1. Moisture Analyzer
2. Capacity: 10g.
3. Resolution: 0.001g
4. Moisture Resolution:0.01%
5. PanSize:90mm humidity
6. Measure Repeatability: ±0.1% (sample 2 g), ± 0.04% (sample 5 g)
7. Humidity readout precision: 1% 5g sample

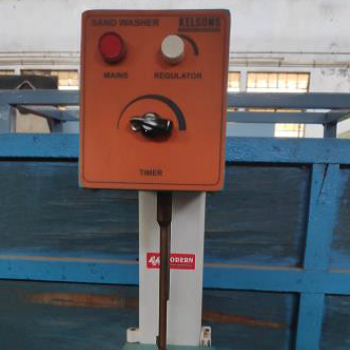

1. Motor- 1/20 HP Single phase
2. Cycles- 50
3. Sieve- 53Micron (Dia. 100mm)

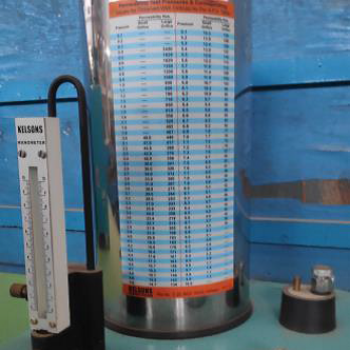

1. Air tank (2000CP)
2. Water Tank
3. Manometer Unit
4. Permeability Chart
5. 2 Orifices and Syphon Unit

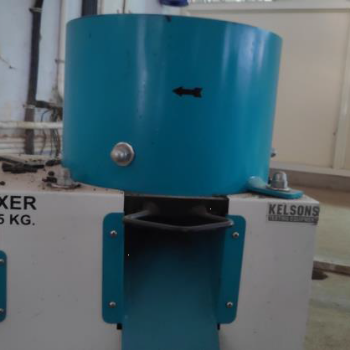

1. Capacity: 5 kg (Batch)
2. Motor with Gear Box ¼ HP Single Phase/ Three Phase, Scraper- 2Nos.

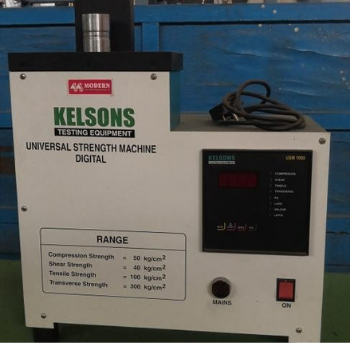

1. Capacity: 15kg/cm2
2. Load Cell
3. Digital Strength Indicator
4. Memory Storage

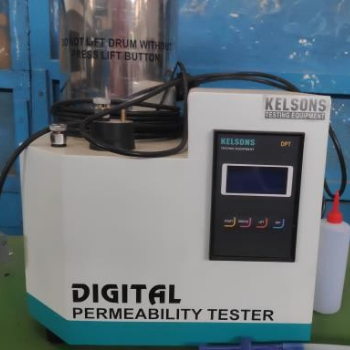

1. Diameter 50 mmx 50 mm
2. Precision Digital Pressure Gauge
3. 4 Line LCD display
4. Flow control by solenoid valve
5. Electric Connection: 230 V AC, 50 Cycles, 5Amps
6. Dimensions: 400 mmx330mmx560 mm

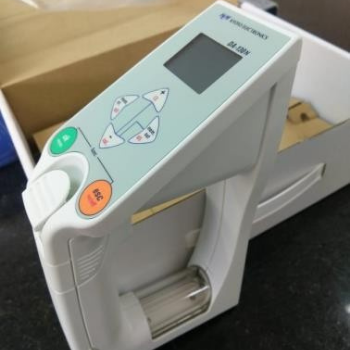

1. Range: 0.0000-2.0000 g/cm3
2. Precision: ±0.001 g/cm3
3. Resolution: 0.0001 g/cm3
4. Temperature range: 0 -40 °C
5. Sampling: By Syringe or hand pump
6. Display: Density, temperature compensated density, Specific gravity
7. Data Storage:1100 samples
8. Temperature Compensation Possible

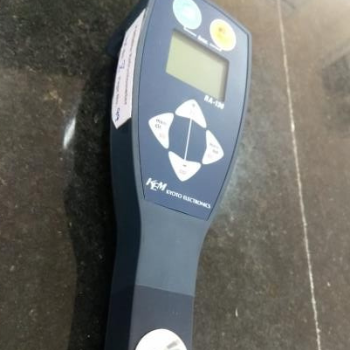

1. RI Range: 1.3200 –1.5000
2. Accuracy: ±0.0005
3. Temperature Range:10to40°C
4. Display: Temperature corrected, Refractive index and others
5. Memory: up to 1100measurements
6. Sampling: Dipping or Dripping
