Engineering Design-Equipments

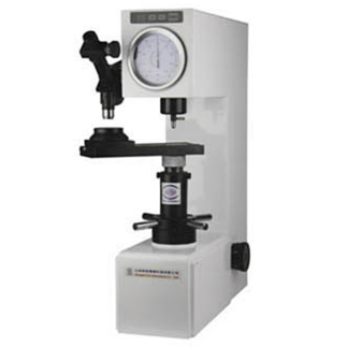

Hardness Tester
- PC based Automatic measurement for Brinell impression.
- Accuracy - 10 micron.
- Test Loads - 250 to 3000 in stages of 250
- Built in optical system with 14 x magnification

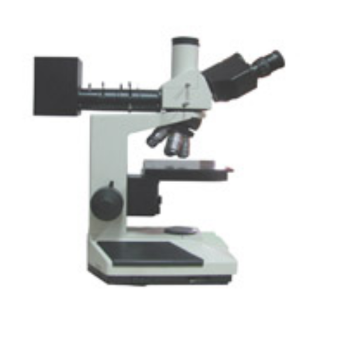

Trinacular Inverted Metallurgical Microscope
- Objectives: Plan M-10X, Plan M-20X, Plan M-40X, 100X (Oil)
- Eyepieces: Widefield WF-10X
- Magnification Range: 100X - 1000X (standard)
- Mechanical Stage: Co- axial mechanical square stage Size: 200mm x 152mm
- Magnification Changer: Quadrupule ball bearing revolving changer for perfect alignment
- Observation Tube: High transmission Trinocular head equipped with 45* inclined observation tubes and adjustable interpupillary distance
- Illumination: Built in Koehler's incident illuminator with 6V 20W halogen lamp, field and aperture diaphragm with yellow, green and blue filters
- Focusing: Coarse and fine co-axial focusing on Ball track movement for greater reliability. Coarse motion range 35mm. Fine focusing range 1.4mm
- Camera Adopter: C-Mount lens adaptor
- Camera: 3.1 MP Digi.Cam.
- Filters: Yellow, Green and Blue filters

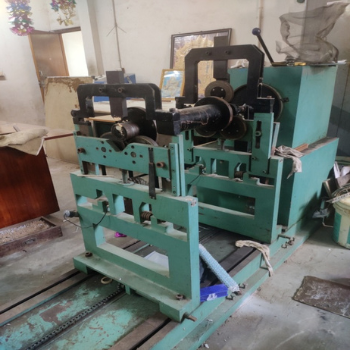

Dynamic Balancing Machine
- Machine model H1K
- Unbalance Measurement system MAB1
- Nominal weight capacity: 1000 Kg
- Maximum diameter of rotor: 1600 mm
- Maximum Length of bed: 2500 mm
- Journal diameter range: 25 – 180 mm
- Minimum readable unbalance: 5mmgm
- Balancing speed: 250-500-750 RPM
- Drive: 7.5 HP AC Motor

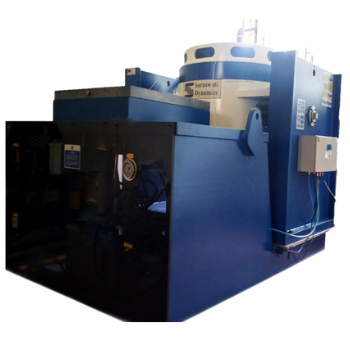

Electro Dynamic Shaker
- Force level: 2500 kgf (peak)
- Frequency range: 5 Hz to 2800 Hz (NF of shaker is 2800 Hz)
- Acceleration level: 100 g (o-P)
- Displacement level: 51 mm (P-P)
- Velocity level: 1.7 m/sec
- Pressure scale: 0-16 Bar.
- Operating pressure: 4-6 Bar.
- Max. Pressure: 6 Bar
- Capacity: 2.5 Tonne
- Maximum mass of the component to be placed: 400 kg.

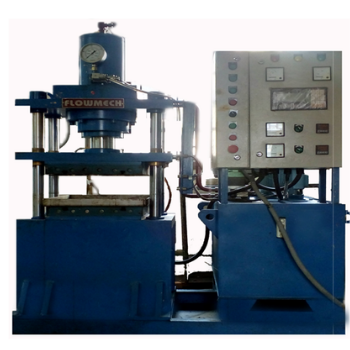

20 Ton Compression Moulding Machine
- Max. Pressure = 80 Bar
- Max. Temp. = 700C

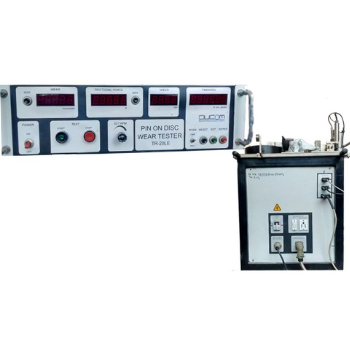

Pin on disc
- Disc rotation speed: Min. 200RPM, Max. 2000 RPM
- Wear track diameter: Min. 50 mm, Max. 100 mm
- Wear disc diameter: ϕ 160 x 8 mm
- Normal Load: 1 N to 200 N
- Pin diameter: ϕ 3, 6, 8, 10, & 12 mm
- Ball diameter: ϕ 3, 6, 8, 10, & 12 mm

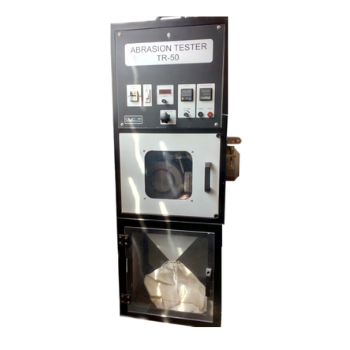

Abrasion Tester
- Rubber wheel diameter: ϕ 228.6 mm
- Thickness: 12.7 mm
- Hardness: Durameter A-62
- Initial load: 5 Kg
- Min. & Max. Wheel speed: 10 – 250 RPM
- Motor specification: 2 Hp, 1440 RPM, 6 terminal with gear head 250 RPM
- Normal Load: 0.5 Kg, 1 Kg, 2 K up yo 13 Kg

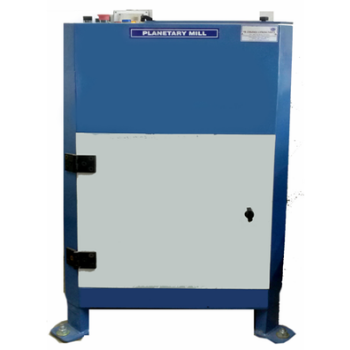

Ball Milling Machine
- Bowl / Jar speed: 80 to 1000 RPM
- Table / Plate speed:1-600 RPM
- Run time: 1 - 999 minutes
- Off time: 1 - 999 minutes
- No of cycles : 1 to 999
- Forward, Reverse & Alternate direction selection.
- Acceleration:- 1 to 30 Seconds
- Deceleration: 1 to 30 Seconds
- Rotational Speed of Main Disc / Base Plate : 40 to 400 RPM Settable
- Maximum Feed Particle Size: Upto 10 mm
- Final Fineness : Upto 1 µm
- Operating Centrifugal Acceleration : ≥ 30 g
- Power Supply : Planetary Ball Mill shall operate on input power supply of 230 V, 1-Phase, 50 Hz or 415 V, 3-Phase, 50 Hz.

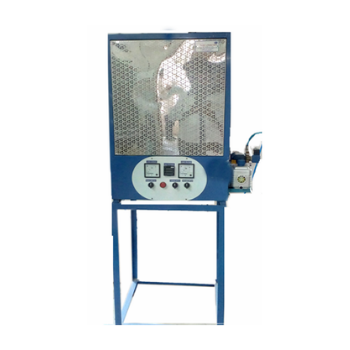

Tubular Furnace
- Shell size: 600 × 600 mm
- Useful volume: 200 × 70 mm
- Withstandable temperature: 18000C
- Max. Operating temperature: 17000C
- Heating element: SiC Solid type, 500 mm length
- Operating hour: 1.24 Hr
- Power: 4kW

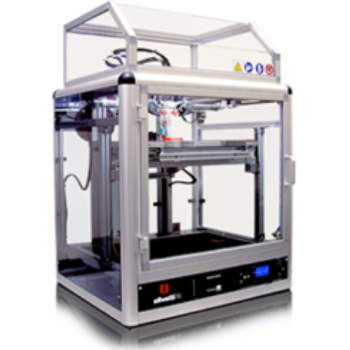

FDM 3D Printing Machine
- Material: Polyamide(PLA), Monumetal, Wood
- Filament diameter: 1.75 mm
- Heated bed: No
- Layer thickness: 0.05 mm
- Nozzle temperature: 2850C
- Precision: X-Y axes 0.04 mm, Z axis 0.01 mm
- Printing speed: 200 mm/s
